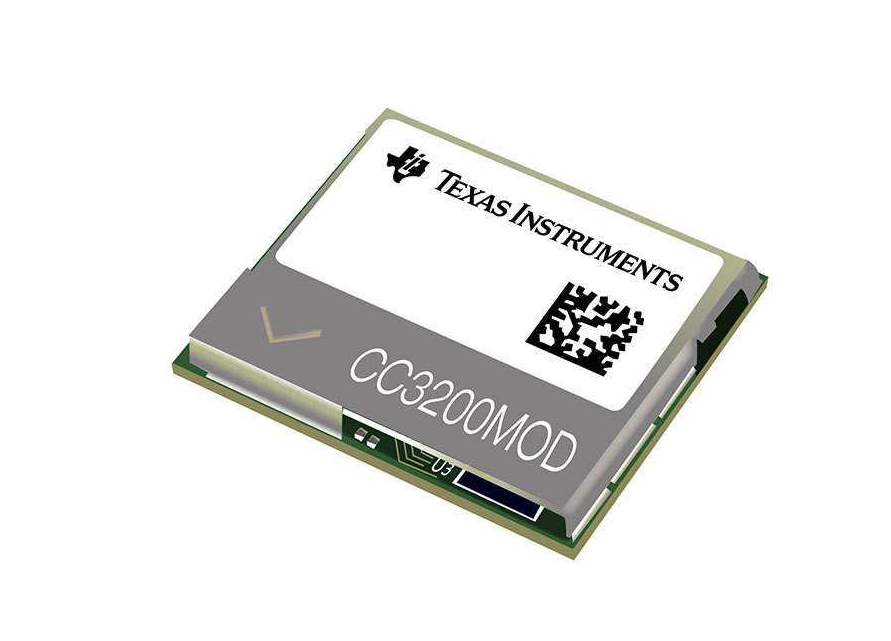

CC3200MODR1M2AMOBR Wi-Fi CC3200 片上因特网无线 MCU 模块
发布时间： 2017/3/3 9:53:46 | 1599 次阅读
描述
Start your design with the industry’s first programmable FCC, IC, CE, and Wi-Fi Certified Wireless microcontroller (MCU) module with built-in Wi-Fi connectivity. Created for the Internet of Things (IoT), the SimpleLink CC3200MOD is a wireless MCU module that integrates an ARM Cortex-M4 MCU, allowing customers to develop an entire application with a single device. With on-chip Wi-Fi, Internet, and robust security protocols, no prior Wi-Fi experience is required for faster development. The CC3200MOD integrates all required system-level hardware components including clocks, SPI flash, RF switch, and passives into an LGA package for easy assembly and low-cost PCB design. The CC3200MOD is provided as a complete platform solution including software, sample applications, tools, user and programming guides, reference designs, and the TI E2E support community
The applications MCU subsystem contains an industry-standard ARM Cortex-M4 core running at 80 MHz.
The device includes a wide variety of peripherals, including a fast parallel camera interface, I2S, SD/MMC, UART, SPI, I2C, and four-channel ADC. The CC3200 family includes flexible embedded RAM for code and data; ROM with external serial flash bootloader and peripheral drivers; and SPI flash for Wi-Fi network processor service packs, Wi-Fi certificates, and credentials.
The Wi-Fi network processor subsystem features a Wi-Fi Internet-on-a-chip and contains an additional dedicated ARM MCU that completely off-loads the applications MCU. This subsystem includes an 802.11 b/g/n radio, base_band, and MAC with a powerful crypto engine for fast, secure Internet connections with 256-bit encryption. The CC3200MOD supports station, access point, and Wi-Fi Direct™ modes. The device also supports WPA2 personal and enterprise security and WPS 2.0. The Wi-Fi Internet-on-a-chip includes embedded TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols. The power-management subsystem includes integrated DC-DC converters supporting a wide range of supply voltages. This subsystem enables low-power consumption modes, such as the hibernate with RTC mode requiring less than 7 μA of current.
特性
The CC3200MOD is a Wi-Fi Module that Consists of the CC3200R1M2RGC Single-Chip Wireless MCU. This Fully Integrated Module Includes all Required Clocks, SPI Flash, and Passives.
Modular FCC, IC, and CE Certifications Save Customer Effort, Time, and Money
Wi-Fi CERTIFIED Modules, With Ability to Request Certificate Transfer for Wi-Fi Alliance Members
1.27-mm Pitch LGA Package for Easy Assembly and Low-Cost PCB Design
Applications Microcontroller Subsystem
ARM Cortex-M4 Core at 80 MHz
Embedded Memory Options
Integrated Serial
RAM (up to 256KB)
Peripheral Drivers in ROM
Hardware Crypto Engine for Advanced Hardware Security Including
AES, DES, and 3DES
SHA and MD5
CRC and Checksum
8-Bit, Fast, Parallel Camera Interface
1 Multichannel Audio Serial Port (McASP) Interface With Support for I2S Format
1 SD (MMC) Interface
32-Channel Micro Direct Memory Access (μDMA)
2 Universal Asynchronous Receivers/Transmitters (UARTs)
2 Serial Peripheral Interfaces (SPIs)
1 Inter-integrated Circuit (I2C)
4 General-Purpose Timers (GPTs)
16-Bit Pulse-Width Modulation (PWM) Mode
1 Watchdog Timer Module
4-Channel 12-Bit Analog-to-Digital Converters (ADCs)
Up to 25 Individually Programmable GPIO Pins
Wi-Fi Network Processor Subsystem
802.11b/g/n Radio, Baseband, and Medium Access Control
TCP/IP Stack
8 Simultaneous TCP, UDP, or RAW Sockets
2 Simultaneous TLS v1.2 or SSL 3.0 Sockets
Powerful Crypto Engine for Fast, Secured WLAN Connections With 256-Bit Encryption
Station, Access Point, and Wi-Fi Direct Modes
WPA2 Personal and Enterprise Security
SimpleLink Connection Manager for Managing Wi-Fi Security States
TX Power
17 dBm at 1 DSSS
17.25 dBm at 11 CCK
13.5 dBm at 54 OFDM
RX Sensitivity
–94.7 dBm at 1 DSSS
–87 dBm at 11 CCK
–73 dBm at 54 OFDM
Application Throughput
UDP: 16 Mbps
TCP: 13 Mbps
Power-Management Subsystem
Integrated DC-DC Converter With a Wide-Supply Voltage:
VBAT: 2.3 to 3.6 V
Low-Power Consumption at 3.6 V
Hibernate With Real-Time Clock (RTC):
7 μA
Low-Power Deep Sleep: <275 μA
RX Traffic: 59 mA at 54 OFDM
TX Traffic: 229 mA at 54 OFDM
Additional Integrated Components
40.0-MHz Crystal
32.768-kHz Crystal (RTC)
8-Mbit SPI Serial Flash RF Filter and Passive Components
Package and Operating Conditions
1.27-mm Pitch, 63-Pin, 20.5-mm ×
17.5 mm LGA Package for Easy Assembly and Low-Cost PCB Design
Operating Temperature Range: –20°C to 70°C
Start your design with the industry’s first programmable FCC, IC, CE, and Wi-Fi Certified Wireless microcontroller (MCU) module with built-in Wi-Fi connectivity. Created for the Internet of Things (IoT), the SimpleLink CC3200MOD is a wireless MCU module that integrates an ARM Cortex-M4 MCU, allowing customers to develop an entire application with a single device. With on-chip Wi-Fi, Internet, and robust security protocols, no prior Wi-Fi experience is required for faster development. The CC3200MOD integrates all required system-level hardware components including clocks, SPI flash, RF switch, and passives into an LGA package for easy assembly and low-cost PCB design. The CC3200MOD is provided as a complete platform solution including software, sample applications, tools, user and programming guides, reference designs, and the TI E2E support community
The applications MCU subsystem contains an industry-standard ARM Cortex-M4 core running at 80 MHz.
The device includes a wide variety of peripherals, including a fast parallel camera interface, I2S, SD/MMC, UART, SPI, I2C, and four-channel ADC. The CC3200 family includes flexible embedded RAM for code and data; ROM with external serial flash bootloader and peripheral drivers; and SPI flash for Wi-Fi network processor service packs, Wi-Fi certificates, and credentials.
The Wi-Fi network processor subsystem features a Wi-Fi Internet-on-a-chip and contains an additional dedicated ARM MCU that completely off-loads the applications MCU. This subsystem includes an 802.11 b/g/n radio, base_band, and MAC with a powerful crypto engine for fast, secure Internet connections with 256-bit encryption. The CC3200MOD supports station, access point, and Wi-Fi Direct™ modes. The device also supports WPA2 personal and enterprise security and WPS 2.0. The Wi-Fi Internet-on-a-chip includes embedded TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols. The power-management subsystem includes integrated DC-DC converters supporting a wide range of supply voltages. This subsystem enables low-power consumption modes, such as the hibernate with RTC mode requiring less than 7 μA of current.
特性
The CC3200MOD is a Wi-Fi Module that Consists of the CC3200R1M2RGC Single-Chip Wireless MCU. This Fully Integrated Module Includes all Required Clocks, SPI Flash, and Passives.
Modular FCC, IC, and CE Certifications Save Customer Effort, Time, and Money
Wi-Fi CERTIFIED Modules, With Ability to Request Certificate Transfer for Wi-Fi Alliance Members
1.27-mm Pitch LGA Package for Easy Assembly and Low-Cost PCB Design
Applications Microcontroller Subsystem
ARM Cortex-M4 Core at 80 MHz
Embedded Memory Options
Integrated Serial
RAM (up to 256KB)
Peripheral Drivers in ROM
Hardware Crypto Engine for Advanced Hardware Security Including
AES, DES, and 3DES
SHA and MD5
CRC and Checksum
8-Bit, Fast, Parallel Camera Interface
1 Multichannel Audio Serial Port (McASP) Interface With Support for I2S Format
1 SD (MMC) Interface
32-Channel Micro Direct Memory Access (μDMA)
2 Universal Asynchronous Receivers/Transmitters (UARTs)
2 Serial Peripheral Interfaces (SPIs)
1 Inter-integrated Circuit (I2C)
4 General-Purpose Timers (GPTs)
16-Bit Pulse-Width Modulation (PWM) Mode
1 Watchdog Timer Module
4-Channel 12-Bit Analog-to-Digital Converters (ADCs)
Up to 25 Individually Programmable GPIO Pins
Wi-Fi Network Processor Subsystem
802.11b/g/n Radio, Baseband, and Medium Access Control
TCP/IP Stack
8 Simultaneous TCP, UDP, or RAW Sockets
2 Simultaneous TLS v1.2 or SSL 3.0 Sockets
Powerful Crypto Engine for Fast, Secured WLAN Connections With 256-Bit Encryption
Station, Access Point, and Wi-Fi Direct Modes
WPA2 Personal and Enterprise Security
SimpleLink Connection Manager for Managing Wi-Fi Security States
TX Power
17 dBm at 1 DSSS
17.25 dBm at 11 CCK
13.5 dBm at 54 OFDM
RX Sensitivity
–94.7 dBm at 1 DSSS
–87 dBm at 11 CCK
–73 dBm at 54 OFDM
Application Throughput
UDP: 16 Mbps
TCP: 13 Mbps
Power-Management Subsystem
Integrated DC-DC Converter With a Wide-Supply Voltage:
VBAT: 2.3 to 3.6 V
Low-Power Consumption at 3.6 V
Hibernate With Real-Time Clock (RTC):
7 μA
Low-Power Deep Sleep: <275 μA
RX Traffic: 59 mA at 54 OFDM
TX Traffic: 229 mA at 54 OFDM
Additional Integrated Components
40.0-MHz Crystal
32.768-kHz Crystal (RTC)
8-Mbit SPI Serial Flash RF Filter and Passive Components
Package and Operating Conditions
1.27-mm Pitch, 63-Pin, 20.5-mm ×
17.5 mm LGA Package for Easy Assembly and Low-Cost PCB Design
Operating Temperature Range: –20°C to 70°C
